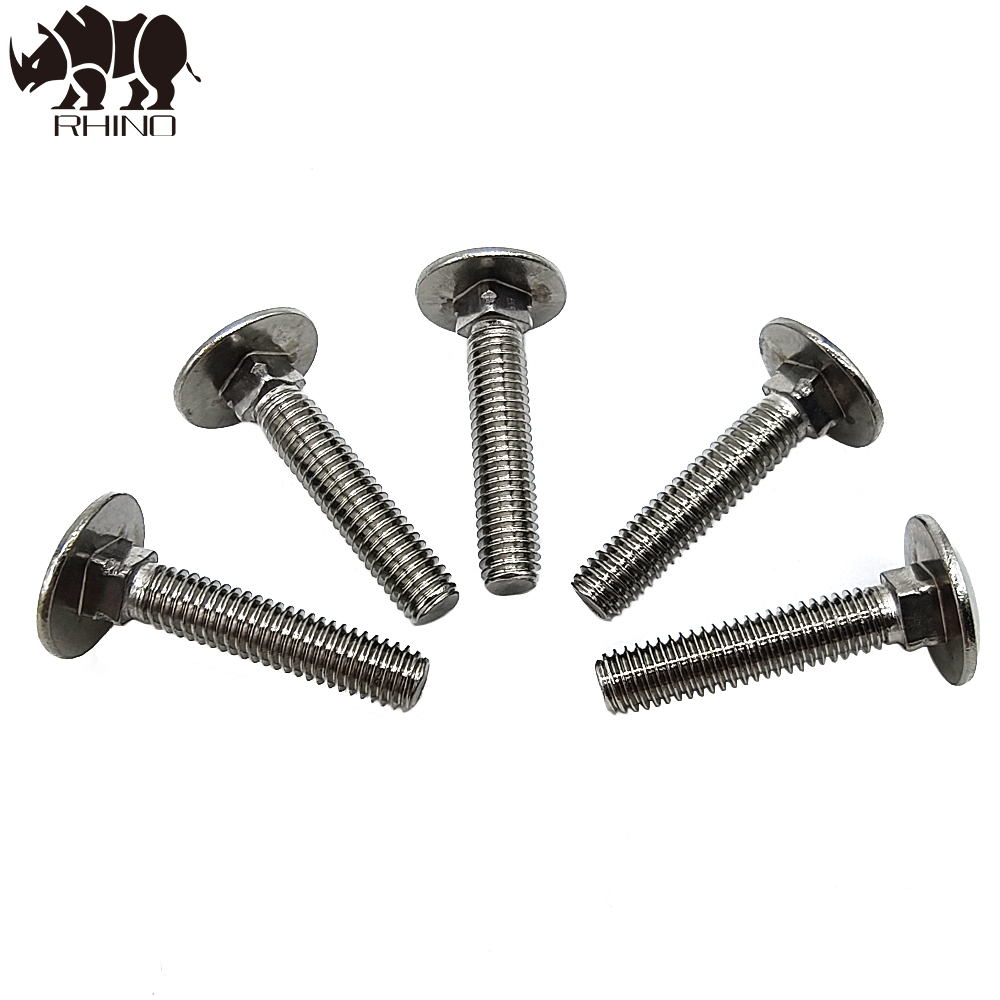

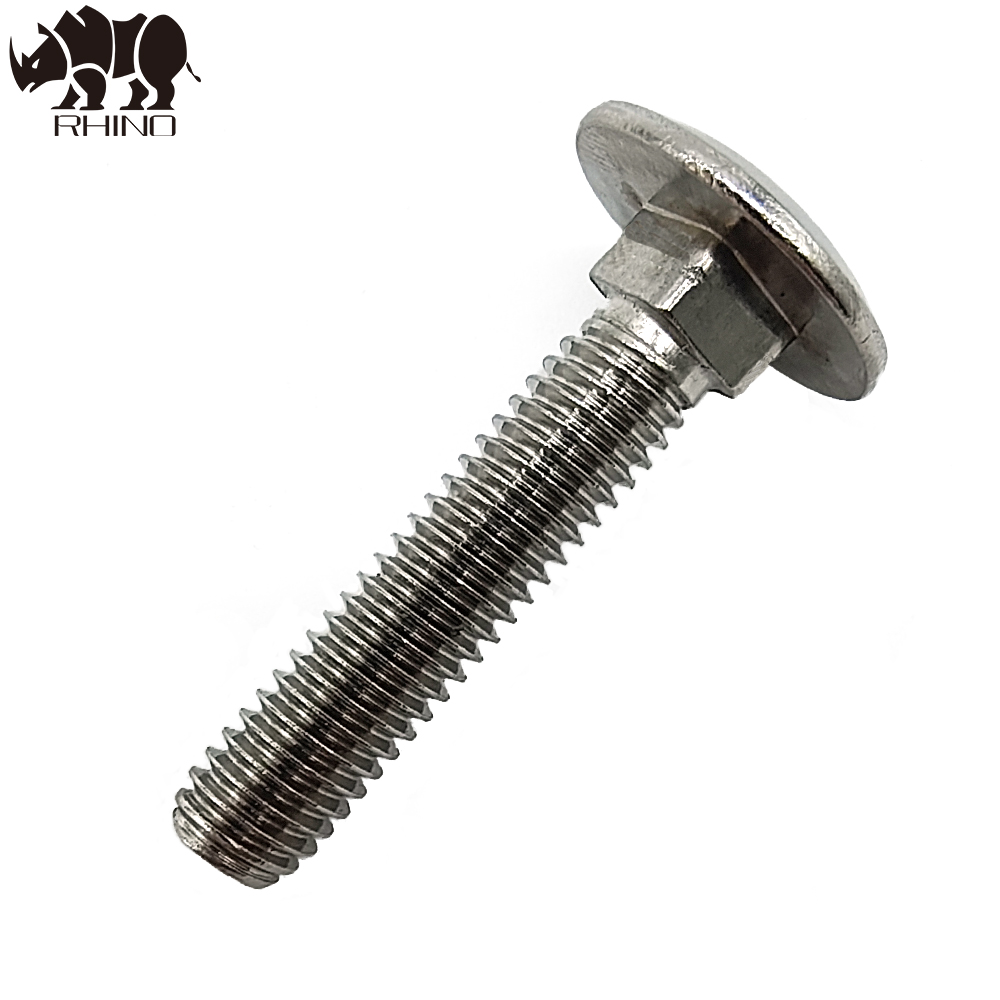

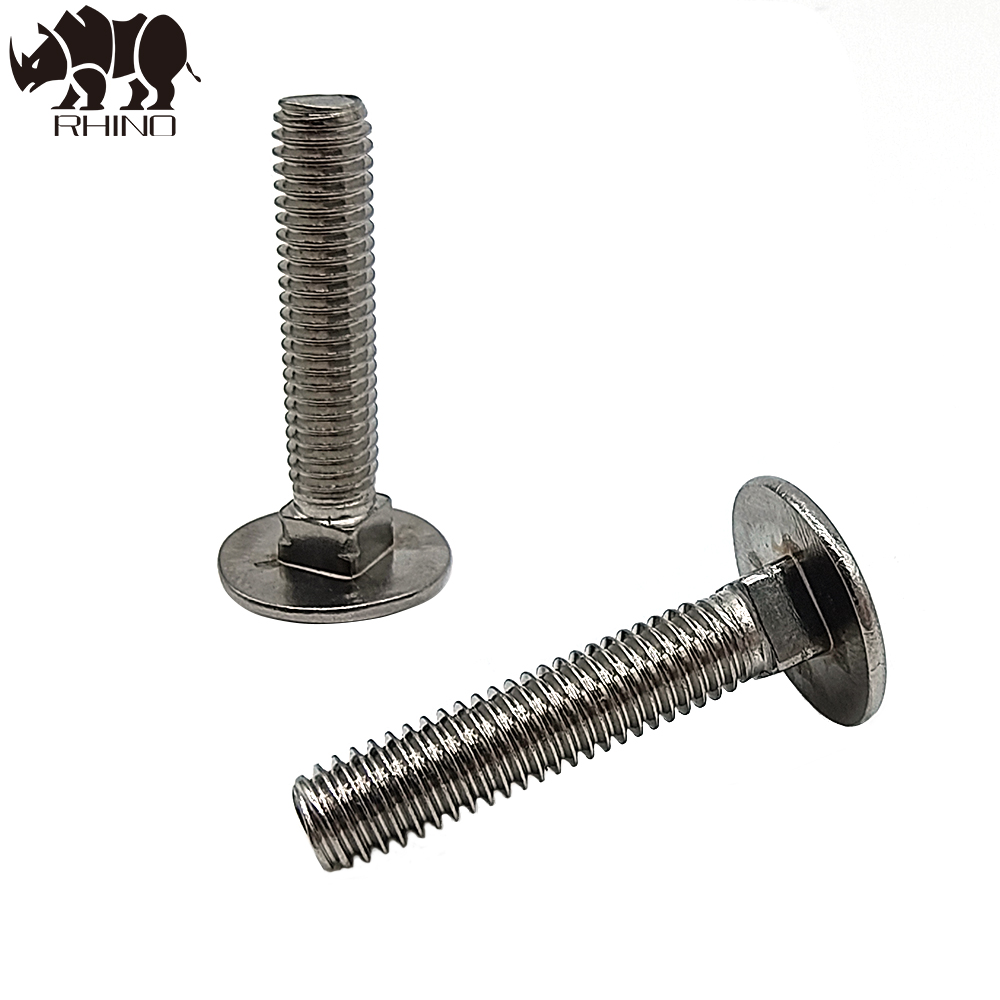

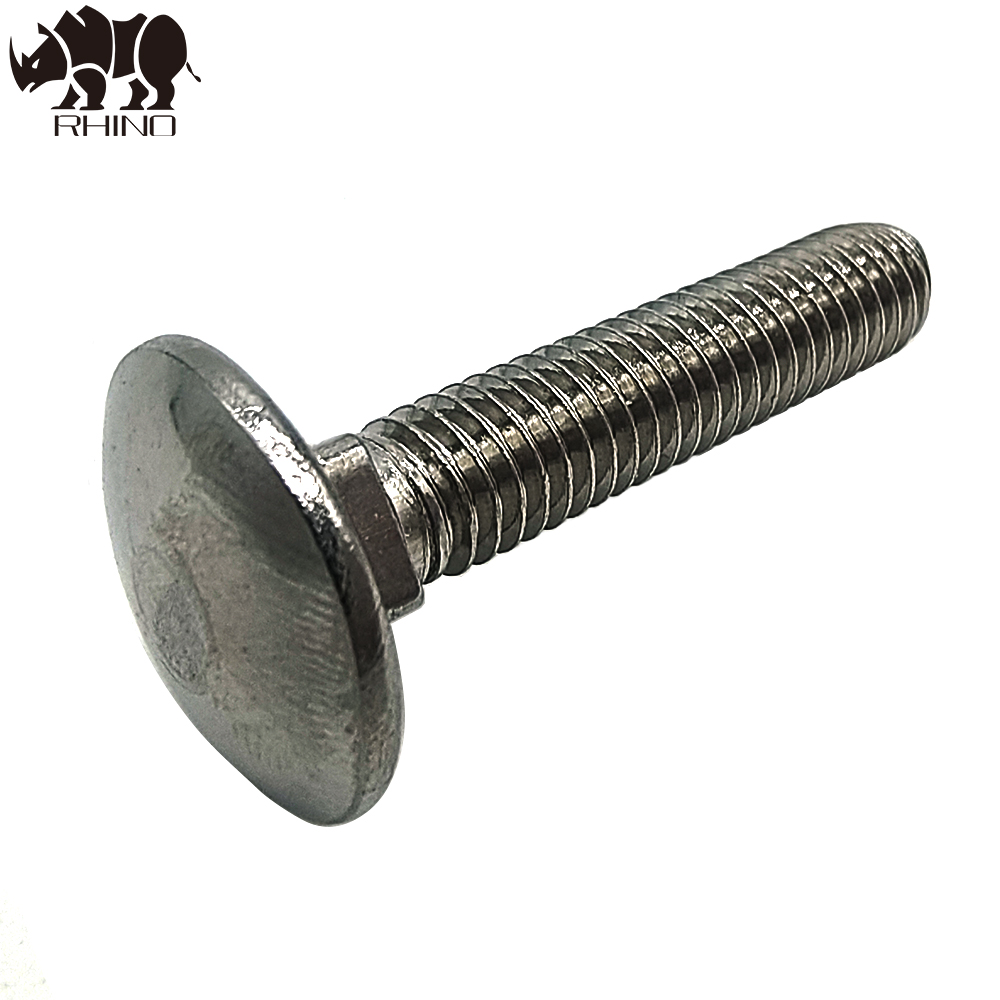

The Half Round Head Square Neck Bolt features a semi-spherical head with a square neck positioned directly beneath it. This structural design requires a corresponding square hole on the connected component. When the bolt is inserted and the nut is tightened, the square neck fits firmly into the square opening, preventing rotation during fastening. Because the head surface is smooth and rounded, it reduces the chance of snagging on surrounding objects during use.
This type of bolt is commonly applied in wooden structural assemblies such as trucks, barges, iron and wood looms, and other wooden framework systems. The semi-spherical head offers a wide bearing surface, reducing the likelihood of the bolt sinking into the wood and improving long-term fastening reliability. Its full-thread design enhances grip strength and ensures stable tightening across a range of load-bearing wooden joints.
Product Data
Specification
d
M6
M8
M10
M12
M14
M16
M20
b
L≤125
18
22
26
30
34
38
46
125≤L≤200
/
28
32
36
40
44
52
dk
max
15.10
19.10
24.30
29.30
33.60
36.60
45.60
min
13.30
17.30
22.16
27.16
31.00
34.00
43.00
K1
max
4.40
5.40
6.40
8.45
9.45
10.45
12.55
min
3.60
4.60
6.60
7.55
8.55
9.55
11.45
k
max
3.48
4.48
5.48
6.48
7.9
8.90
10.90
min
2.70
3.60
4.60
5.60
6.55
7.55
9.55
S
max
6.30
8.36
10.36
12.43
14.43
16.43
20.52
min
5.84
7.80
9.80
11.76
13.76
15.76
19.72
Applications
Building Insulation: Primarily used in the installation of thermal insulation systems in residential, commercial, and industrial buildings.
External Wall Insulation: Often used in External Thermal Insulation Composite Systems (ETICS) to fix insulation boards to external walls.
Roof Insulation: Suitable for securing insulation materials on roofs to enhance energy efficiency and thermal performance.
Floor Insulation: Utilized in floor insulation systems to prevent heat loss through the flooring and improve overall energy efficiency.
