Introduction

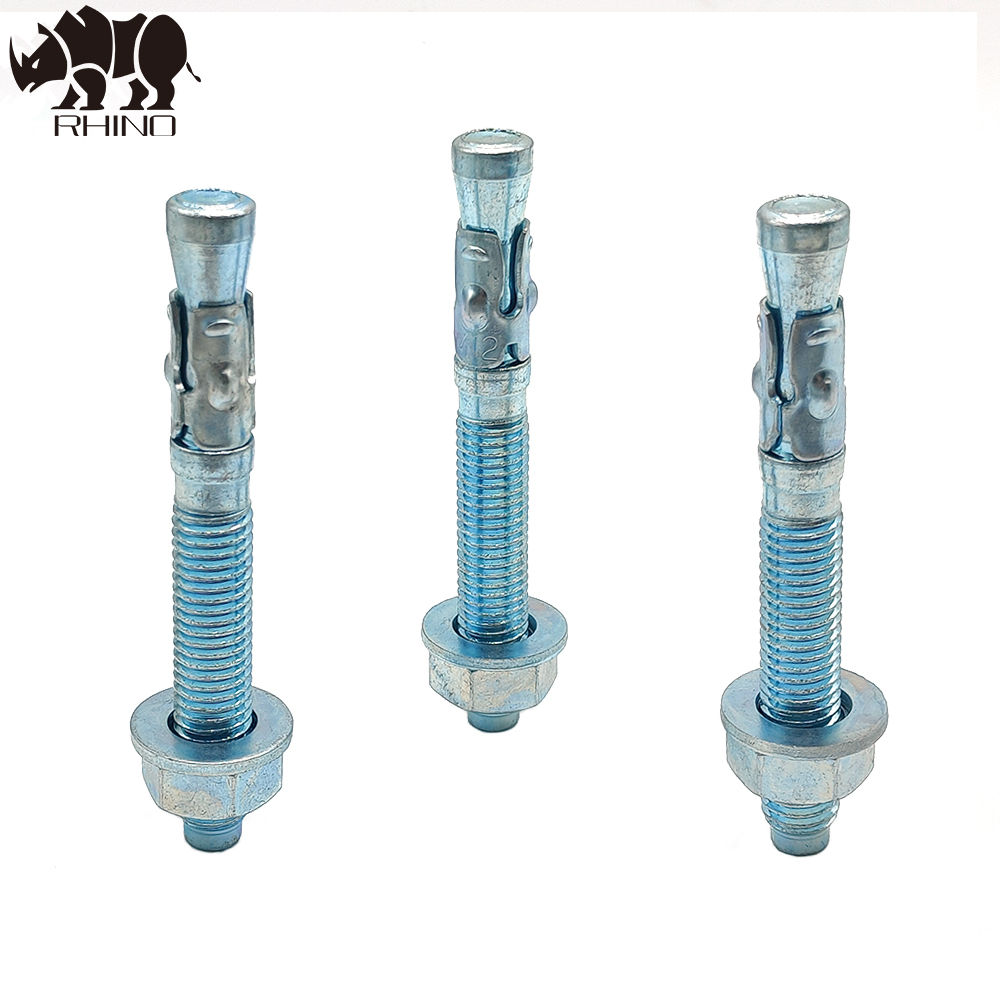

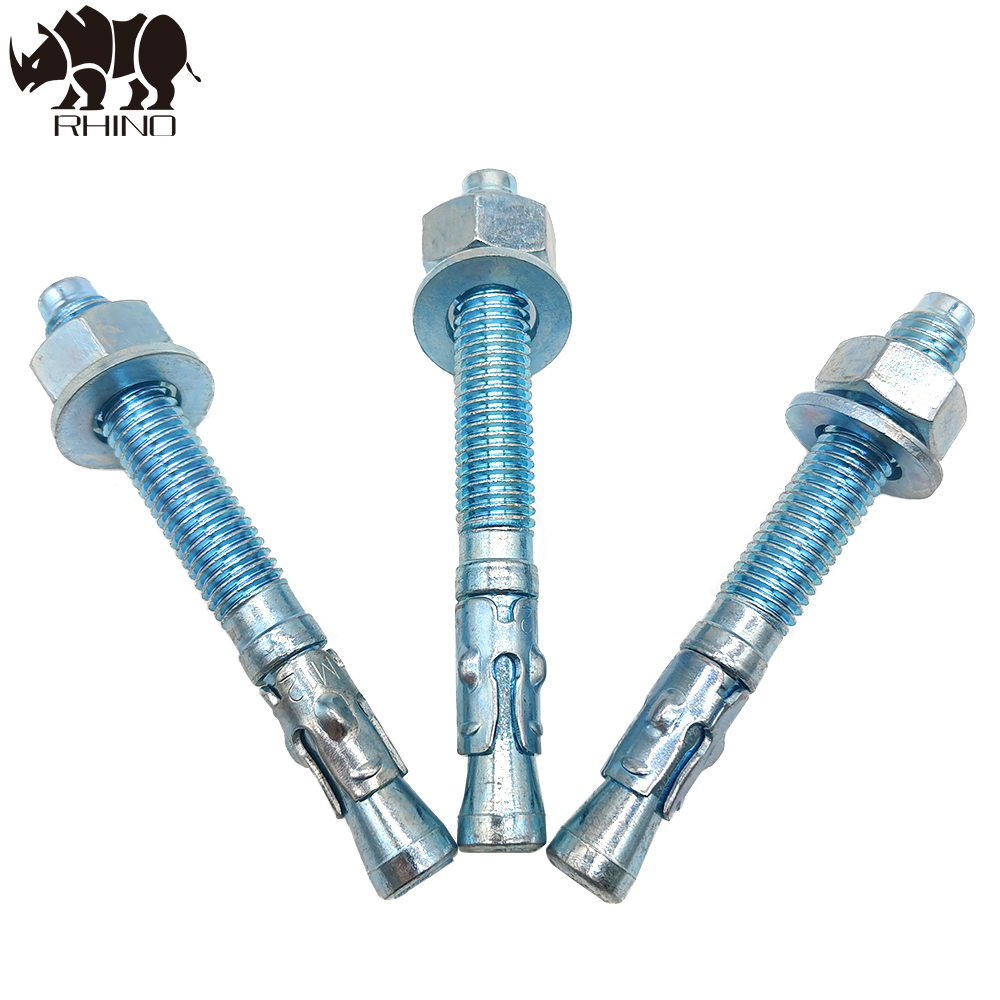

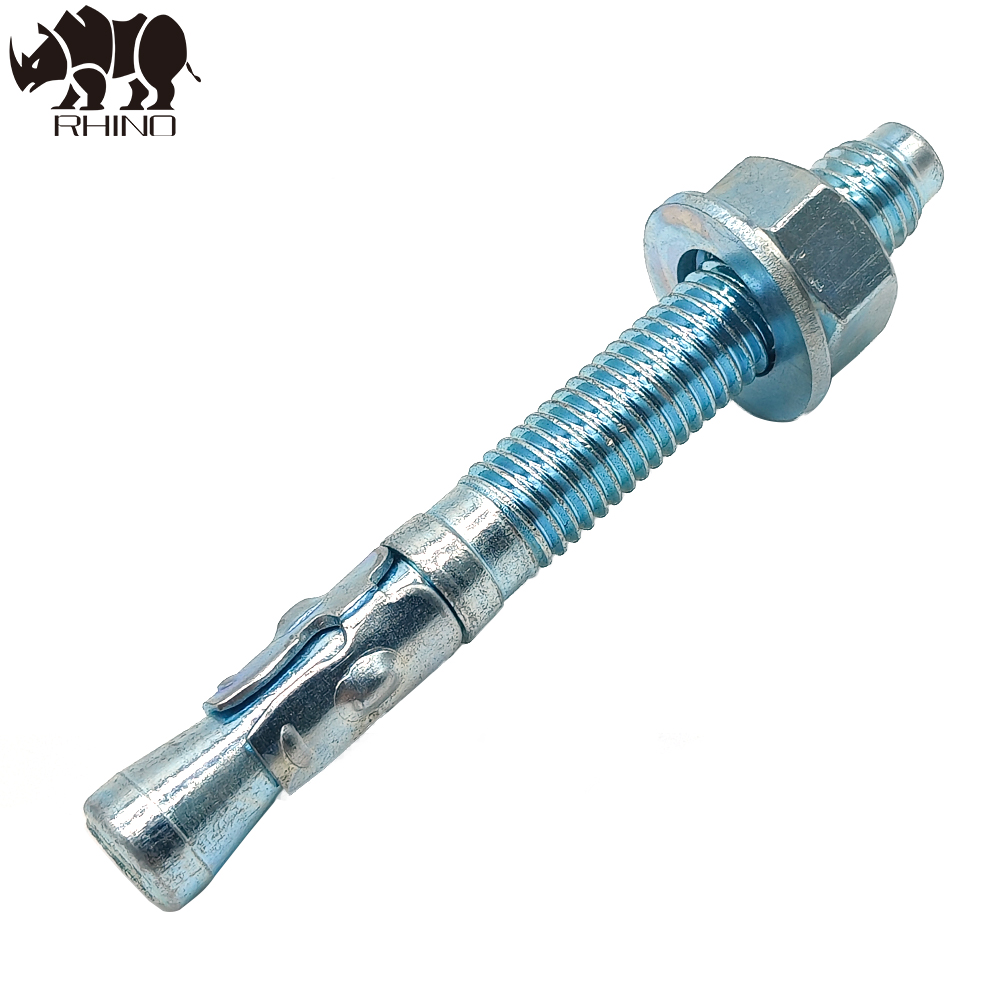

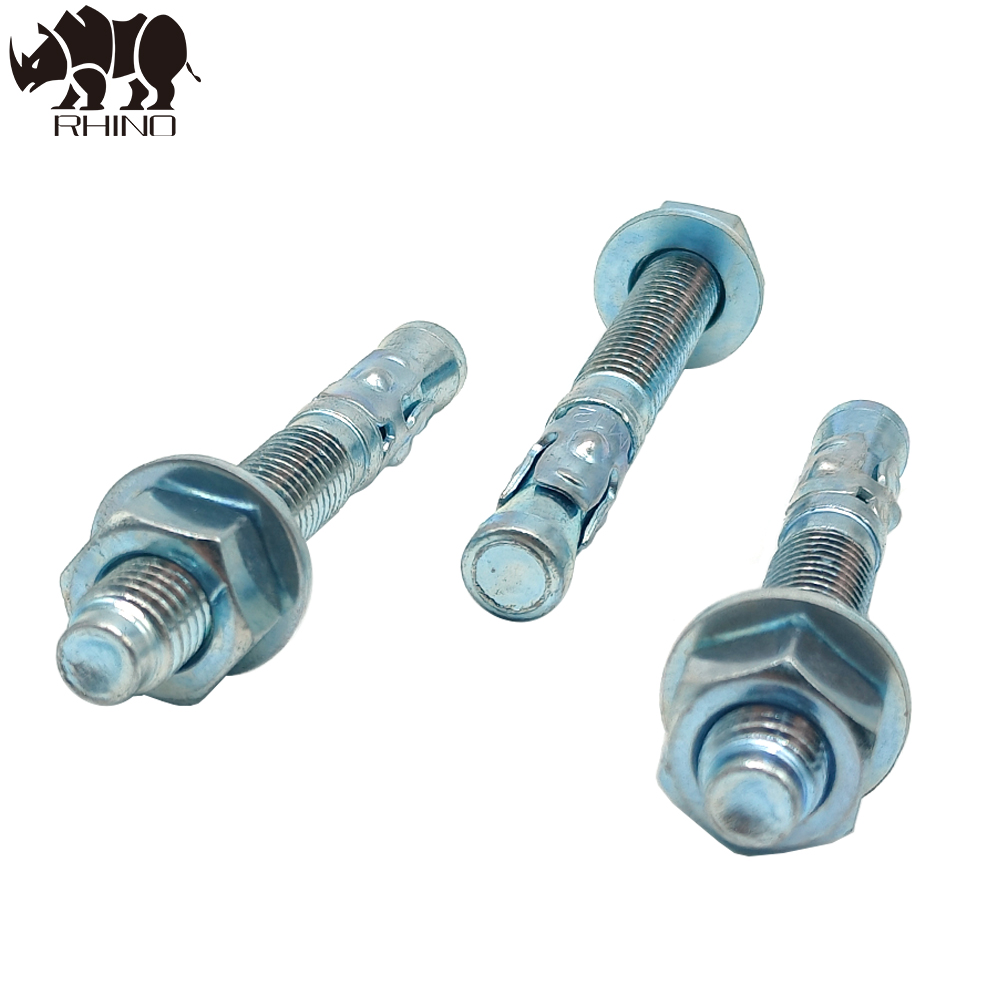

The Hex Concrete Wall Hardware Wedge Anchor is a versatile expansion anchor used for securing fixtures to concrete, masonry, and steel panels. It offers several advantages: Easy Installation,High Load Capacity and Dust-Free and Low Noise. Suit for various applications, including ceiling installations. More information please chick here.

Product Data

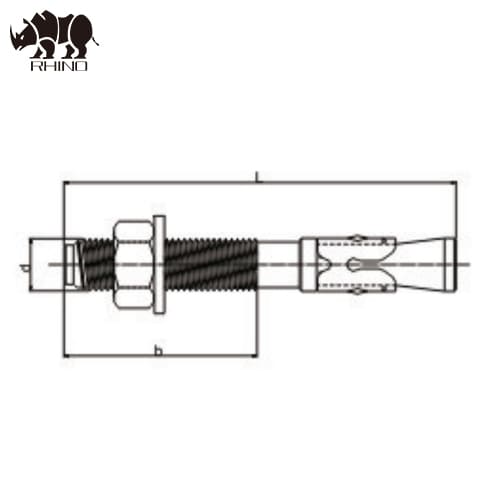

SIZE
M6*60	M10*75	M12*120	M14*200	M20*170
M6*65	M10*80	M12*125	M14*250	M20*180
M6*80	M10*90	M12*135	M16*100	M20*200
M8*50	M10*95	M12*140	M16*105	M20*220
M8*60	M10*100	M12*150	M16*110	M20*240
M8*65	M10*105	M12*160	M16*120	M20*250
M8*70	M10*110	M12*170	M16*125	M20*280
M8*75	M10*115	M12*180	M16*140	M20*300
M8*80	M10*120	M12*200	M16*145	M24*120
M8*90	M10*125	M12*220	M16*150	M24*150
M8*95	M10*130	M12*240	M16*160	M24*170
M8*100	M10*140	M12*250	M16*175	M24*200
M8*105	M10*150	M12*260	M16*180	M24*230
M8*115	M10*170	M12*280	M16*200	M24*260
M8*120	M10*190	M14*100	M16*220	M24*300
M8*130	M10*200	M14*110	M16*240
M8*150	M12*80	M14*120	M16*260
M8*165	M12*85	M14*130	M16*280
M10*60	M12*90	M14*140	M16*300
M10*65	M12*100	M14*150	M20*100
M10*70	M12*110	M14*160	M20*140
M10*75	M12*120	M14*175	M20*150
M10*80	M12*125	M14*180	M20*160

specification
Installation hole diameter	Effective burial depth	Max thickness of the fixed object	30Mpa Tensile standard load	30Mpa Shear standard load	30Mpa Tensile safety load
8mm	42mm	40mm	15.28KN	10.3KN	11.9KN
8mm	55mm	50mm	16.48KN	10.5KN	12.5KN
10mm	56mm	54mm	22.19KN	18.2KN	19.4KN
10mm	65mm	62mm	21.08KN	18.8KN	19.5KN
12mm	70mm	65mm	33.93KN	26.5KN	28.6KN
12mm	75mm	70mm	39.61KN	32.6KN	35.4KN
16mm	86mm	84mm	54.31KN	56.25KN	48.1KN
16mm	88mm	85mm	55.5KN	60.1KN	48.5KN
